Product Model: | Lens-02812V-3MP |
FOB Price: | US$3.07~US$3.37 |
Min. Order: | 1pcs |
Product Brand: | IdeaCamera |
OEM/ODM: | Support |
Warranty: | 2 Years |
Country of Origin: | China |
Certificate: | CE,FCC,ROHS |
PDF: |

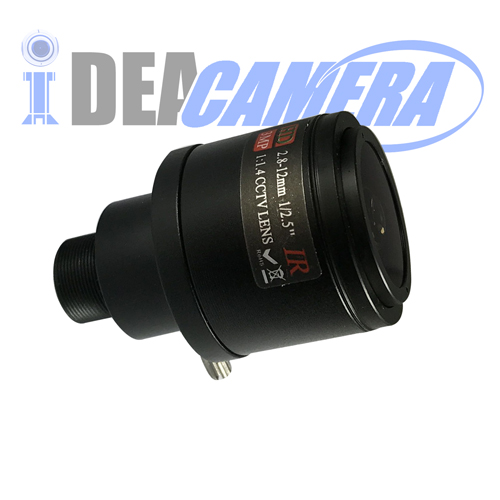

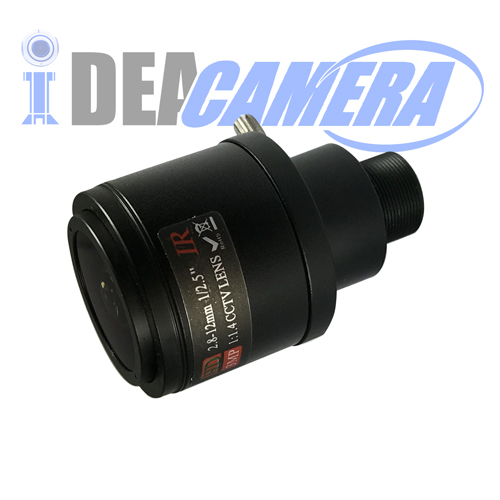

Model: Lens-02812V-3MP
Lens Advantages:
Big Aperture@ F1.4, best night vision.
Support 1/2.5INCH Sensor, No dark corner.
Super Clearly Image, No Purple line.
Support 1MP/2MP/3MP HD CCTV Camera
24 hours monitoring.
Key Features:
Focal Length (mm): 2.8-12mm
Resolution (Pixels): 3MP
Image Size: 1/2.5"
Aperture D/f": F1.4
Field of View: 93-28.7 degrees
Mount Type: Φ14 M12
Dimension (mm): Φ28.6*44.8
Operating Temperature: -20℃~+80℃
Back Focal-Length (mm): 6.5-13.5
Weight (g): 34
Operation: Manual Varifocal, Fixed IRIS
Production Advantages:
Offer all life warranties.
Logistics convenient.
OEM/ODM.
CE/FCC/ROHS Certified.
Strict product quality control.
Work with all the surveillance CCTV Camera, AHD Camera, and IP Camera.
More clearly, good quality.
Competitive price.
6-8 working day lead time for order.
Production applications:
Most of the products are mainly used in CCTV surveillance, automotive driving recorder and other high-precision optical systems.
Model | Lens-02812V-3MP | ||
Aperture D/f' | F1.4 | ||
Focal-Length (mm) | 2.8-12 | ||
Mount | Φ14 M12 | ||
sensor | 1/2.5" | ||
Field of View | Diagonal | 93-28.7 | |
Lens construction | 6G+8G | ||
Dimension (mm) | Φ28.6*44.8 | ||
Weight (g) | 34 | ||
M.O.D (m) | 0.2 | ||
Back Focal-Length (mm) | 6.5-13.5 | ||
Operating Temperature | -20℃~+80℃ | ||
Zoom | Manual | ||
Operation | Focus | Manual | |
Iris | Fixed |

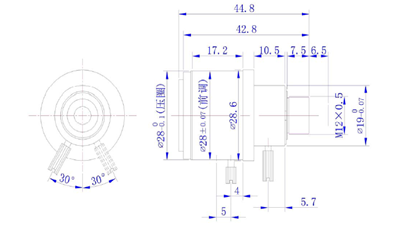

Dimension:
