Product Model: | Lens-02712V-3MP |
FOB Price: | US$4.38~US$4.68 |
Min. Order: | 1pcs |
Product Brand: | IdeaCamera |
OEM/ODM: | Support |
Warranty: | 2 Years |
Country of Origin: | China |
Certificate: | CE,FCC,ROHS |
PDF: | ![]() |

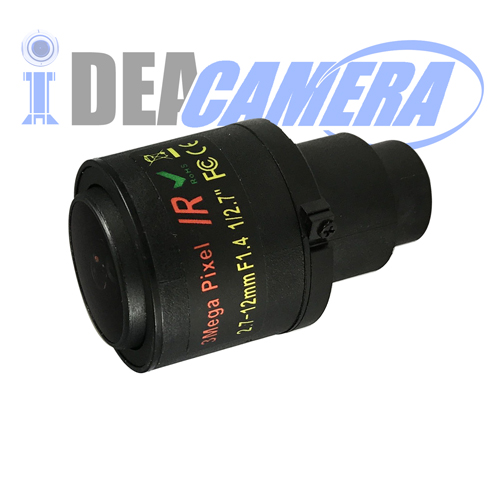

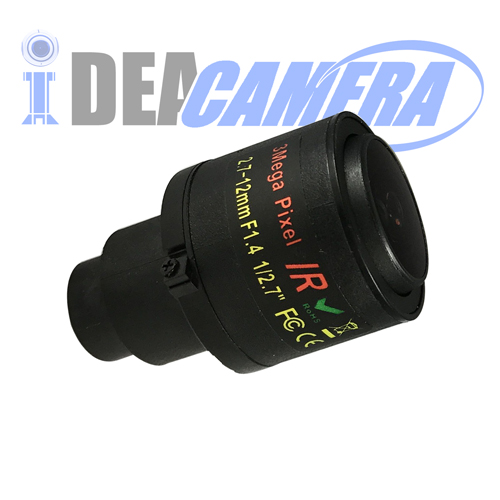

Model: Lens-02712V-3MP
Lens Advantages:
Big Aperture@ F1.4, best night vision.
Aspherical Glass of made in Japan, make sure the image more clearly and no optical Distortion.
Support 1/2.7INCH Sensor, No dark corner.
Super Clearly Image, No Purple line.
Support 1MP/2MP/3MP/5MP HD CCTV Camera.
24 hours monitoring.
Key Features:
Focal Length (mm): 2.7-12mm
Resolution (Pixels): 3MP
Image Size: 1/2.7"
Aperture D/f": F1.4
Field of View: 132-41 degrees
Mount Type: Φ14
Dimension (mm): Φ28*44
Operating Temperature: -20℃~+80℃
Back Focal-Length (mm): 13.3
Weight (g): 20g
Operation: Varifocal, Fixed IRIS
Production Advantages:
Offer all life warranties.
Logistics convenient.
OEM/ODM.
CE/FCC/ROHS Certified.
Strict product quality control.
Work with all the surveillance CCTV Camera, AHD Camera, and IP Camera.
More clearly, good quality.
Competitive price.
6-8 working day lead time for order.
Production applications:
Most of the products are mainly used in CCTV surveillance, automotive driving recorder and other high-precision optical systems.
Model | Lens-02712V-3MP | ||||
Aperture D/f' | F1.4 | ||||
Focal-Length (mm) | 2.7-12 | ||||
Mount | Φ14 | ||||
sensor | 1/2.7" | 1/2.8" | 1/2.9" | 1/3" | |
Field of View | Diagonal | 132-41 | 127-40 | 120-39 | 116-38 |
Horizontal | 111-36 | 106-35 | 101-33.5 | 90-27.5 | |
Vertical | 58-20 | 55-19.5 | 54-19 | 65-22 | |
On Axis | 0.87(Wide) | 100LP/mm | |||
Resolution MTF | 0.61(Tele) | ||||
70% Field | 0.76(T) | 0.81(S) | Wide | ||
0.44(T) | 0.58(S) | Tele | |||
Image Sensor Size(μm) | 5MP 2μm*2μm | ||||
Optical Distortion | -15% | ||||
Relative Illumination | >58% | ||||
Shief Ray Angle | <9° | ||||
Dimension (mm) | Φ28*44 | ||||
Weight (g) | 20 | ||||
M.O.D (m) | 0.2 | ||||
Back Focal-Length (mm) | 13.3 | ||||
Operating Temperature | -20℃~+80℃ | ||||
Zoom | Manual | ||||
Operation | Focus | Manual | |||
Iris | Fixed |

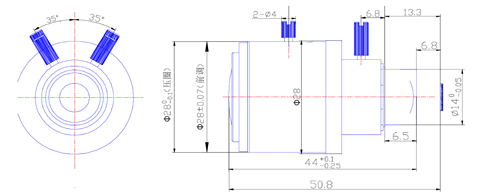

Dimension:
