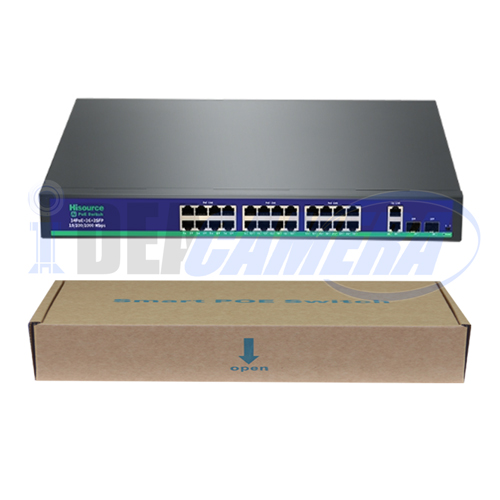

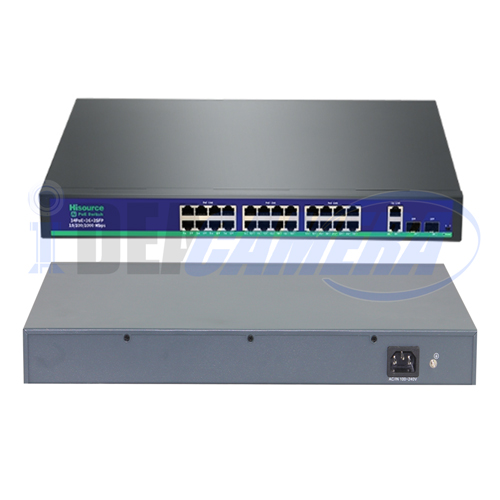

250W 24+2+2 Active 100/1000Mbps POE Switch, Internal Power.

2023/5/26 14:27:15, Visits:
Product Model: F2422G
FOB Price: US$137-US$140
Min. Order: 1pc
Product Brand: IdeaCamera
OEM/ODM: Support
Warranty: 2 Years
Country of Origin: China
Certificate: CE,FCC,ROHS

Inquire Now >

Model: F2422G

Key features:

24*10/100/1000Mbps RJ45 portsupport POE+.

2*10/100/1000Mbps RJ45 uplink port.

2*1000Mbps SFP uplink port.

The whole power is 250W, each port max. power supply reached 30W.

Product Description:

The POE port supports the priority mechanism.

F2422G POE Switch is designed and developed by our company. It can meet the demand of POE. It uses the latest high-speed Ethernet switching chip, has ultra-high backplane bandwidth design, and has extremely fast data processing capability and smooth data transmission performance. It has 24*RJ45 port2*RJ45 1000Mbps uplink port2*SFP 1000Mbps uplink port. Each port max. power supply reached 30W, the whole power is 250W. It can automatically detect and identify PD device that meets the IEEE 802.3af/at, support the priority mechanism.


Excellent port performance

Supply 24*10/100/1000Mpbs RJ45 self-adaption, high-speed forwarding and non-packet loss RJ45 port.

Supply 2*10/100/1000Mpbs RJ45 uplink port.

Supply 2*1000Mpbs SFP uplink port.


All ports supported by MDI/MDIX auto flip and self-negotiation. Support IEEE802.3X Full-duplex and backpressure for half-duplex mode.


Excellent POE power supply performance

24*10/100/1000Mpbs RJ45 port support POE+, meets the requirements for security monitoring, teleconference system, and wireless coverage.

Detect the PD devices automatically and supply the power without damaging non-POE devices.


MOQ: 5pcs.


Network   Standard

IEEE 802.3IEEE 802.3uIEEE 802.3x,   IEEE 802.ab, IEEE 802.AF/AT


24*10/100/1000Mbps   RJ45 port

210/100/1000Mbps   RJ45 uplink port

21000Mbps SFP   uplink port

POE power

24*10/100/1000Mbps   RJ45 port support POE+

The whole   power max. is 250W

Each port max.   power supply reached 30W

POE Connection

1-24 port   support IEEE802.3af/at

Both1/2+3/6- and 4/5+7/8-



Store and   forward

MAC address   table 8k

Switching   capacity 56Gbps

Forwarding   Rate




Port Function

Power priority   mechanism, fast and forward, MAC automatic

learning and   aging IEEE802.3X Full-duplex and backpressure for half-duplex mode


Operating   Temperature-10℃ - -55℃


Built in power   base board

Input220V50HZOutputDC52V±5% 4.8A


Weight   &Size
