Model: F240GB

Key features:

24pcs 10M/100Mbps POE Ports

2pcs RJ45 100/1000Mbps Ports

2pcs SFP 100/1000Mbps Ports

IEEE802.3 AF/AT standard

Support IPC and AP Power Supply

15.4W for each port output, total 400W

Enough power to support almost all of IPC

Transmit distance: ≤200M

Power Supply: 250W 52V 7.7 A

MOQ: 5pcs

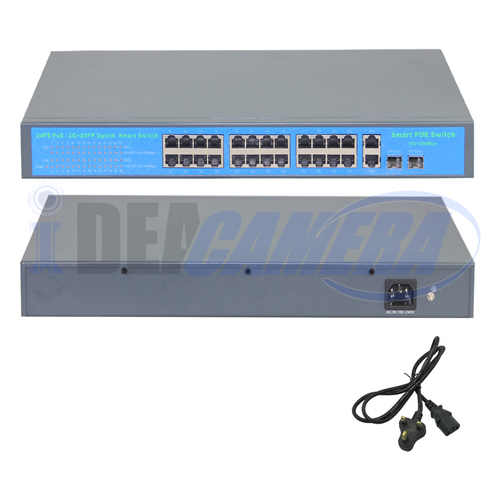

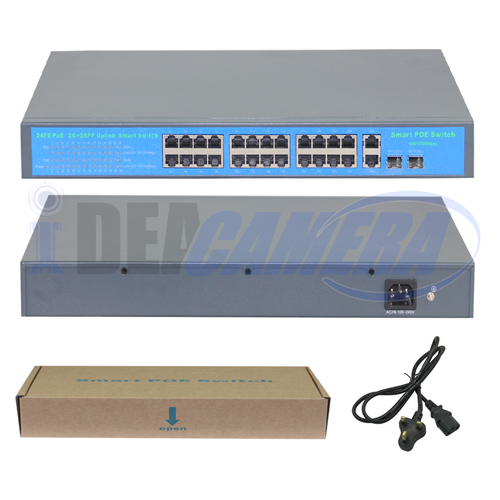

Product	24 Port POE Power Supply Switch (250W)
Model	F240GB
POE Port	1—24 port support IEEE802.3af/at
SFP Port	Support
POE Port Output Power	15.4W/30W IEEE802.3af/at
POE Power Supply Method	1/2+、3/6-（or 4/5+、7/8-）
POE Whole Power	≤400W
POE Standard	IEEE 802.3af/IEEE 802.3at
POE Type	End-span
POE Power Transmission Distance	≤200m
Network Standard	IEEE 802.3、 IEEE802.3u、802.3x、802.3af/at
Network Medium	10/100/1000Mpbs .5 class and above non shielded twisted pair
Network Signal Distance	≤150m
Switch Capability	8.8Gbps
Forwarding Mode	Store and forward
Forwarding Rate	10BASE-T:14880PPS/port 100BASE-tx：14800pps/port 1001000BASE-T: 1488095pps/port
MAC Address	MAC Address table 16K
Port Function	Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode
LED Indicator	Each port occupied 1 LINK/ACT.100Mbps, POE Status Indicator, Whole power indicator
Working Environment	Working Temperature：-10°-- 55°C
Input Power	AC100-240V 50/60HZ
Whole Power	≤400W
Weight	4.2kg
Size	440mm285mm44mm(LWH)
