Product Model: | RC-DVf75C-5MPV-PA |
FOB Price: | US$49.79-US$51.79 |
Min. Order: | 1pc |
Product Brand: | IdeaCamera |
OEM/ODM: | Support |
Warranty: | 2 Years |
Country of Origin: | China |
Certificate: | CE,FCC,ROHS |
PDF: |

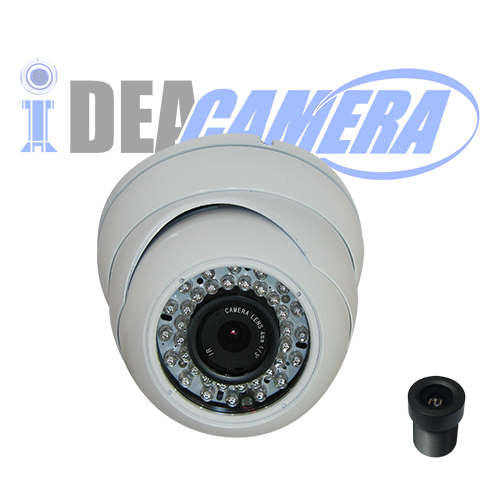

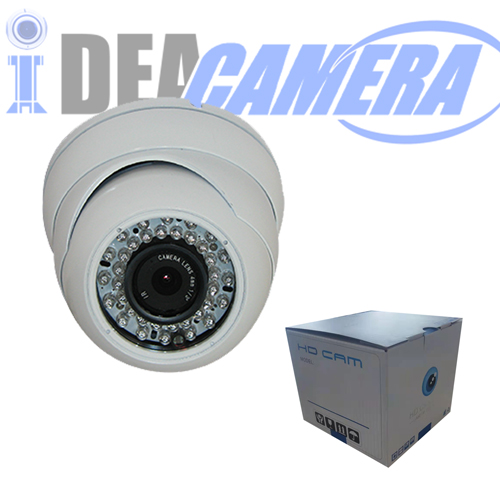

Model: RC-DVF75C-5MPV-PA
Key features:
3MP HD 3.6mm Fixed Lens (6,8,12mm optional).
White metal dome body.
Built-in 36pcs IR LEDs (30M IR distance).
Outdoor Dome Camera with audio.
POE Power in with audio
APP Name: VSS Mobile
Computer Client: IMS300
Main parameters:
Standard 38mm*38mm size, convenient and fast for assembling machine
Support IR_CUT(IR cut filter with auto switch)
Maximum resolution 2592*1944@20fps
Support one channel audio input; one channel audio output; support two-way voice speaking
Support one channel alarm input; one channel alarm out
Support one electric zoom interface(-Z model support)
Support one TTL interface
Support one USB interface
Support one Network lamp interface
Support SMART IR
Support Two-Stream technology
Support 3D DNR,DWDR
Support P2P and cross-browser access.
5MP AF Standard Single-Boards IP Camera Module | ||
Product model | RC-DVF75C-5MPV-PA | |
System Structure | DSP | Embedded RTOS, DSP (Hi3516E V300) |
Sensor | 1/2.8" CMOS sensor (SONY IMX335) | |
Video Encoding | Video Encoding | H.265/ H.264High Profile/Main Profile/ Base Line Profile/ MJPEG |
H.265+/ H.264High Profile+/Main Profile+/ Base Line Profile+ | ||
Maximum Image Output | Main stream:2592*1944@20fps; Auxiliary stream : 704*576@20fps; | |
Streaming transmission | Two- stream | |
Video Bite rate | 32Kbps~8MKbps | |
Image Enhancement | Min. illumination | Color0.1Lux@F1.2(AGC ON); black and white0.01Lux@F1.2(AGC ON) |
Electronic shutter | Auto(1/3 to 1/10000) | |
Day/Night switch | color/B&W/Light sensitive switch/Mixed mode switch | |
white balance | Auto / Lock white balance / fluorescent lamp /filament lamp /fluorescent lamp /HM | |
DNR | 2D and 3D DNR | |
WDR | Support DWDR | |
Video Adjust | Sharpness, Brightness, Saturation, Contrast, chroma adjustable | |
image model | Transparent /real | |
color pattern | Standard /gorgeous | |
Corridor pattern | support | |
backlight compensation | support | |
FLC | support | |
penetrating fog | support | |
image distortion rectifying | support | |
vernier focusing | support (-Z model support) | |
All electric rectifier | support (-Z model support) | |
Smart IR | support | |
Interfaces | Signal interface | one photosensitive resistance signal interface, one IR_CUT drive interface support photo resistance signal links to IR-CUT and IR light |
ICR driving voltage | 5V | |
Smart IR | One port | |
Reset interface | One port | |
Audio interface | One audio in; One audio out | |
Alarm interface | One alarm in; One alarm out | |
electric zoom interface | One port(-Z model support) | |
TTL interface | One port | |
CVBS interface | One port | |
Power interface | One DC12V power input | |
USB interface | One Port | |
POE interface | One Extended Interface | |
Network light interface | One Port | |
Network interface | One RJ45 10/100M Port | |
TF interface | One Port (External USB to TF board) | |
Functions | Motion detection | Multiple detection zones, variable sensitivity levels |
Capture function | JPEG,capture resolution is the max coding resolution | |
Security | Password protection and water marker | |
OSD | Support Channel Name and Time | |
storage | Support FTP storage | |
Smart alarm | Network abnormal, cover alarm etc. | |
Mobile client | VSSMOBILE for both iPhone and Android system phone | |
Protocol support | TCP/IP;UDP;HTTP;IGMP ;ICMP;DHCP;RTP/RTSP;DNS;DDNS;FTP;NTP; UPNP; | |
Interface protocol | ONVIF2.6 | |
General | Power Supply | DC12V |
Power Consumption | <1W (without infrared lamp board) | |
Lightning Protection | Power, network, POE all lightning protection, meets with standard GB/T17626.5,and IEC61000-4-5 | |
IR_CUT pitch | 20mm | |
Size | 38*38(mm)Single Board |
