5Mp ir weatheproof bullet ip camera for outdoor use,poe power,vss mobile app,p2p,face detection,2.8-12mm varifocal lens.

2022/12/20 14:06:38, Visits:
Product Model: RC-DVM75G-5MPV-P
FOB Price: US$53.37-US$55.37
Min. Order: 1pc
Product Brand: IdeaCamera
OEM/ODM: Support
Warranty: 2 Years
Country of Origin: China
Certificate: CE,FCC,ROHS
PDF:

Inquire Now >

Model: RC-DVM75G-5MPV-P

Key features:

3MP HD2.8-12mm Varifocal Lens.

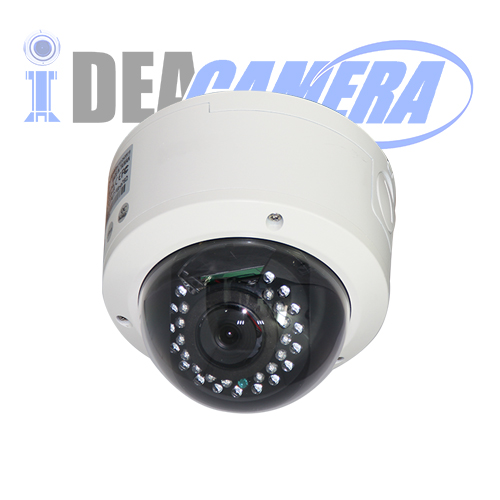

White metal dome body.

Built-in 36pcs IR LEDs (30M IR distance).

Power in: POE/DC12V

APP Name: VSS Mobile

Computer Client: IMS300



Main parameters:

Standard 38mm*38mm size, convenient and fast for assembling machine

Support IR_CUTIR cut filter with auto switch

Maximum resolution 2592*1944@20fps

Support one channel audio input; one channel audio output; support two-way voice speaking

Support one channel alarm input; one channel alarm out

Support one electric zoom interface-Z model support

Support one TTL interface

Support one USB interface

Support one Network lamp interface

Support SMART IR

Support Two-Stream technology

Support 3D DNRDWDR

Support P2P and cross-browser access.


5MP   AF Standard Single-Boards IP Camera Module

Product   model

RC-DVM75G-5MPV-P

System   Structure

DSP

Embedded RTOS, DSP (Hi3516E V300)

Sensor

1/2.8" CMOS sensor (SONY IMX335)

Video   Encoding

Video Encoding

H.265/

H.264High Profile/Main Profile/

Base Line Profile/ MJPEG

H.265+/

H.264High Profile+/Main Profile+/

Base Line Profile+

Maximum Image Output

Main stream2592*1944@20fps;

Auxiliary stream : 704*576@20fps

Streaming transmission

Two- stream

Video Bite rate

32Kbps~8MKbps

Image   Enhancement

Min. illumination

Color0.1Lux@F1.2AGC ON);

black and white0.01Lux@F1.2AGC ON

Electronic shutter

Auto1/3 to 1/10000

Day/Night switch

color/B&W/Light sensitive switch/Mixed mode   switch

white balance

Auto / Lock white balance / fluorescent lamp   /filament lamp /fluorescent lamp /HM

DNR

2D and 3D DNR

WDR

Support DWDR

Video Adjust

Sharpness, Brightness, Saturation, Contrast, chroma   adjustable

image model

Transparent /real

color pattern

Standard /gorgeous

Corridor pattern

support

backlight compensation

support

FLC

support

penetrating fog

support

image   distortion rectifying

support

vernier focusing

support (-Z model support)

All electric rectifier

support (-Z model support)

Smart IR

support

Interfaces

Signal interface

one photosensitive resistance signal interface,

one IR_CUT drive interface

support photo resistance signal links to IR-CUT   and IR light

ICR driving voltage

5V

Smart IR

One port

Reset interface

One port

Audio interface

One audio in; One audio out

Alarm interface

One alarm in; One alarm out

electric zoom interface

One port-Z model support

TTL interface

One port

CVBS interface

One port

Power interface

One DC12V power input

USB interface

One Port

POE interface

One Extended Interface

Network light interface

One Port

Network interface

One RJ45 10/100M Port

TF interface

One Port External USB to TF board

Functions

Motion detection

Multiple detection zones, variable sensitivity   levels

Capture function

JPEGcapture resolution is the max coding resolution

Security

Password protection and water marker

OSD

Support Channel Name and Time

storage

Support FTP storage

Smart alarm

Network abnormal, cover alarm etc.

Mobile client

VSSMOBILE for both iPhone and Android system   phone

Protocol support

TCP/IPUDPHTTPIGMP ICMPDHCPRTP/RTSPDNSDDNSFTPNTP UPNP

Interface protocol

ONVIF2.6

General

Power Supply

DC12V

Power Consumption

<1W (without infrared lamp board)

Lightning Protection

Power, network, POE all lightning protection,

meets with standard GB/T17626.5and   IEC61000-4-5

IR_CUT pitch

20mm

Size

38*38mmSingle Board
