| Product Model: | RP-H805-5MP-18X |
| FOB Price: | US126-US131 |
| Min. Order: | 1pc |
| Product Brand: | IdeaCamera |
| OEM/ODM: | Support |
| Warranty: | 2 Years |
| Country of Origin: | China |
| Certificate: | CE,FCC,ROHS |
| PDF: |  |

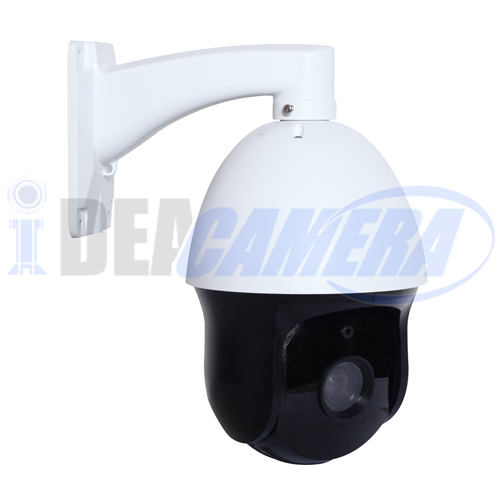

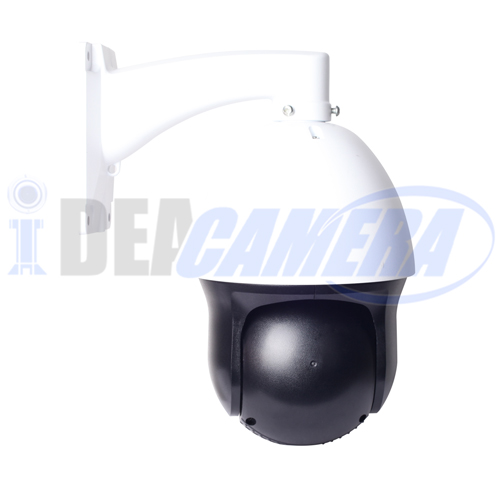

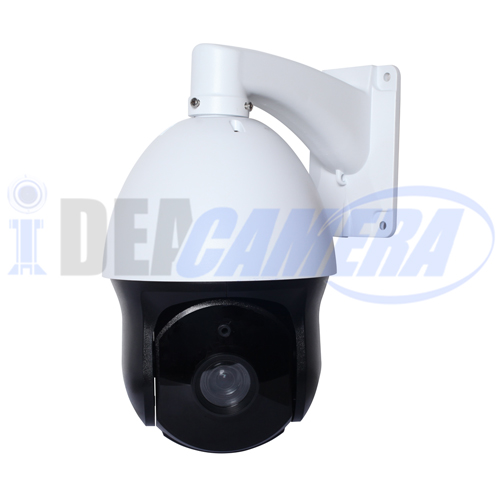

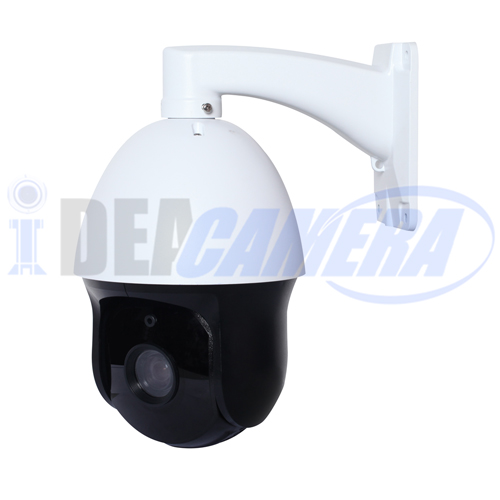

Model: RP-H805-5MP-18X
Key features:
High performance chip (Sony IMX335 CMOS+ HI3516A).
5MP PTZ High Speed Dome IP Camera.
18X Optical Zoom Lens (4.35-96.3mm).
Efficient Resolution: 2592(V)*1944P (H).
H.264/H.265M Video Compression.
7PCS Array 42Mil IR LED+2PCS Laser LED, 120M IR Distance.
Rotation Range (Pan: 0°~360°, Tilt: 0°~93°).
Rotation Speed (Pan: 0~200°/s, Tilt: 0~100°/s).
Auto Flip: Horizontal 180°, Vertical 93°.
Support P2P function, H.265.
2MP/5MP, 18X/33X Zoom optional.
6" Half Metal Body Construction, IP66.
ONVIF; Compatible with HIKVISION, DAHUA, Raysharp, TVT, AEVISION NVR etc.
Intelligent IR illumination & power consumption is variable, dependant the zoom factor.
Camera | ||
Solution | 1/3" CMOS 5MP Hi3516E+Sony335 | |
Output pixel | 2592x1944@20fps | |
Lens | 18X f=4.35mm~96.3mm | |
BLC | Support | |
AGC | Auto/manual | |
WB | Auto/manual/indoor/outdoor | |
DNR | 2DNR, 3DNR | |
WDR | DWDR | |
S/N Ratio | ≥50dB | |
Dome | ||
Communications Protocol | TCP/IP, HTTP, NTP, IGMP, DHCP, UDP, SMTP, RTP, RTSP, ARP, DDNS, DNS, HTTPS, P2P | |
Software Control | IE, EasyVMS, P2P(P6SLite) | |
Rotation Range | Pan: 0°~360°, Tilt: 0°~93° | |
Rotation Speed | Pan: 0~200°/s, Tilt:0~100°/s | |
Auto Flip | Horizontal 180°, Vertical 93° | |
Preset Points | 220pcs presets（dwell time 01-60s interval available） | |
A-B scan | User programmable (scan speed 1-64 levels setting available) | |
Guard Tours | 3 groups (Max.16 points, dwell time user selectable) | |
Operating temperature | -40o~+60oC | |
Operation menu | English | |
Power | DC 12V 3A | |
Consumption | ≤25W | |
Related validation | IP66 | |
IR distance | Up to 120 meters | |
LEDs | 7PCS Array 42Mil IR LED+2PCS Laser LED | |
