Product Model: | RC-HD345T-D-2MP-4X |
FOB Price: | US$60.04-US$62.04 |
Min. Order: | 1pc |
Product Brand: | IdeaCamera |
OEM/ODM: | Support |
Warranty: | 2 Years |
Country of Origin: | China |
Certificate: | CE,FCC,ROHS |
PDF: |
Model: RC-HD345T-D-2MP-4X
Key features:

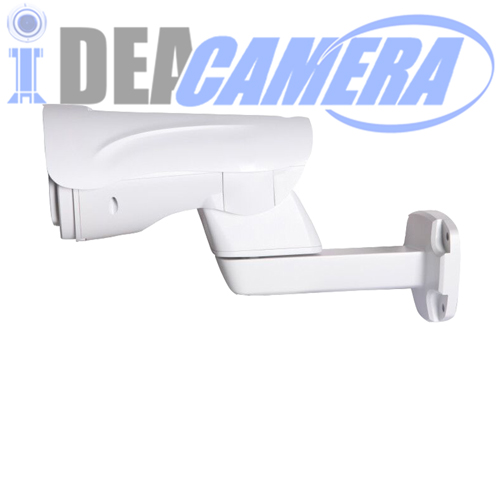

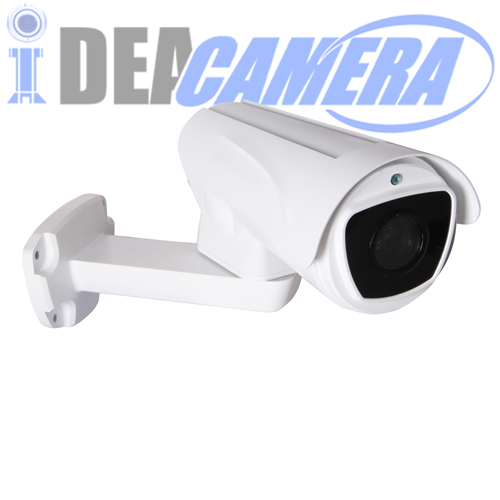

2MP Waterproof PTZ Bullet Starlight Camera
4X 2.8-12mm Auto Focus Zoom Lens
Efficient Resolution: 1920(V)*1080P (H)
Built-in 6pcs Array 42Mil IR LEDs
Rotation Range (Pan: 0°~220°, Tilt: -45°~40°)
Rotation Speed (Pan: 0~30°/s, Tilt: 0 ~25°/s)
Auto Flip: Horizontal 180°, Vertical 93°
Indoor/outdoor optional
Total metal housing,IP66,IK67
IR range reach up to 80 Meters
Pan/Tilt/Zoom ,A-B scan, tour available
ONVIF GB/T28181;Support P2P function
Support H.265/MJPEG compression, triple stream, video output
Compatible with HIKVISION/DAHUA/Milestone/AEVISION/UC2 and AXXON platform
Support audio for optional
Support POE Power Supply for optional
Product Advantages:
Offer 2-years product warranties.
Logistics convenient.
OEM/ODM.
CCC/CE/FCC Certified.
Strict product quality control.
Efficiently working with almost NVR/Hybrid DVR.
Lower price.
6-8 working day per order.
Product applications:
This is the best product of safety field. It and hard disk video recorders,cable,power supply,display,etc. Constitute a complete security system. Tts application is more extensive. Such as homes,factories,highways,office building,garden,community, or a large public places, etc.
Specifications | |
Camera | |
Model | RC-HD345T-D-2MP-4X |
Sensor | 1/2.7" CMOS 2MP SONY307 |
Output pixel | 1920x1080/30fps |
Lens | 4X f=2.8~12mm |
BLC | Support |
AGC | Auto/manual |
WB | Auto/manual/indoor/outdoor |
S/N Ratio | >50dB |
Bullet | |
Communications Protocol | TCP/IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,HTTPS,P2P |
Software Control | IE, CMS, Management Platform |
Video compression | H.264/H.265/M-JPEG |
audio compression | G711,PCM |
Mobile View(optional) | Android iPhone |
Rotation Range | Pan:0o~220o , Tilt:-45o~40o |
Rotation Speed | Pan:0~30°/s , Tilt:0~25o/s |
Preset Points | 220pcs presets(dwell time 01-60s interval available) |
Guard Tours | 3 groups( Max.16 points, dwell time user selectable) |
AB scan range | Any point in range:-45o~40o and 0o~200o |
AB scan speed | 1-9 grades |
Operating temperature | Outdoor: -40℃~+60℃ |
Operation menu | English |
Consumption | ≤15W |
Lightning Protection | Transient voltage 6000V |
Related validation | IP66,CE,FCC,RoHs |
IR parameters | |
Without IR, starlight, full color night vision | |
Support ambient light detection | IR illumination on 1-9 grades selectable |
