| Product Model: | AI-PTX51-JW2I |
| FOB Price: | US$18.95-US$20.95 |
| Min. Order: | 1pc |
| Product Brand: | IdeaCamera |
| OEM/ODM: | Support |
| Warranty: | 2 Years |
| Country of Origin: | China |
| Certificate: | CE,FCC,ROHS |
| PDF: |  |

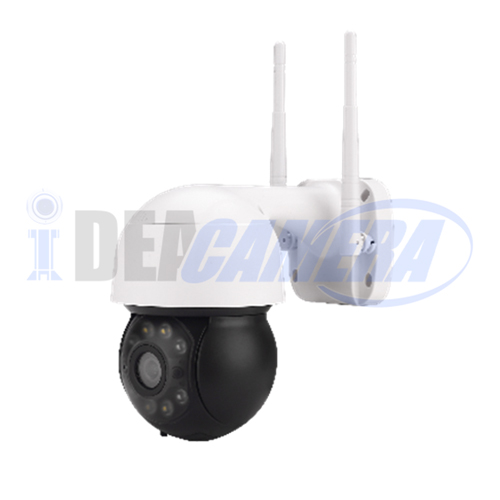

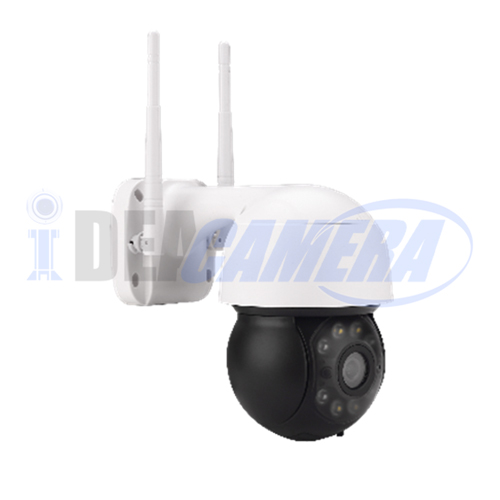

Model: AI-PTX51-JW2I
Product features：
White plastic hosing, 8pcs IR LEDS,1pc LED (Dual Light).
Minimum order quantity: 150pcs.
Fullhan FH8626+GC2083; 1/2.9" 2.0MP FHD image sensor for 360° Full view; IP66 Waterproof and Dustproof; Cloud storage and 128GB TF card storage are supported; Cloud AI technology: Object recognition (Human/Pet etc); Area attract alarm (supports multiple areas); Motion detection and tracking; Full-duplex 2-way voice real-time talk; IR led can be turned off manually; Sleep Mode for privacy protection; Free cloud storage; Smart Dual Light Night Vision;
Product Features | ||
Image Sensor | Sensor | 1/2.9"color CMOS Sensor |
Lens | M12，f: 3.2 mm，F2.2，2-megapixel | |
Visual angle | H (horizontal) 96 degrees; V (vertical) 56 degrees; D (diagonal) 128 degrees | |
Minimum Illumination | 0.01Lux | |
Audio | Input/Output | Two-way voice intercom available (built-in Microphone and speaker) |
Audio Compressing Method | AAC | |
Video | Video Compressing Method | H.264，H.265 |
Lighting Frequency | 50 Hz，60 Hz | |
Image Frame Rate | 15 fps | |
Maximum Image Resolution | 1920*1080 | |
Light Source for Night Vision | Mid-power infrared lamp (850nm in wavelength) / dual-source white-light source with an irradiation distance of 7m | |
Network | Wireless Network | 2.4G Wi-Fi（IEEE802.11b/g/n），built-in antenna |
Protocols Supported | TCP/IP，UDP/IP，DHCP，RTMP，MUTP | |
IP Address Supported | Dynamic IP address supported | |
pan-tilt | rotation angle | H (horizontal) 355 degrees; V (vertical) 90 degrees; |
AI | Intelligent Features | Human contour detection, activity zone, vehicle detection, pet snapshot and package inspection |
Alarm Notification | Alarm Methods | Alarm push by mobile APP，white light flashing and alarm sound |
Wake-up | Wake-up Method | PIR body induction wake-up, and remote wake-up |
Video Recording | Recording Method | Alarm triggered recording, and manual recording |
Video Storage | Cloud storage, local Micro SD card, and mobile phone memory | |
Indicator Lamps | LED Indicator | RGB tri-color lamp indicating the status of power/network signal/functionality |
Battery | Capacity | 9000 mAh |
Removability | Unremovable | |
Battery Life | 8 months (provided that 20 10s videos are recorded per day，pan-tilt does not rotate) | |
Standby Time | 2 years | |
Charging Voltage | DV 5V+-5% 1.5A | |
Charge Time | Within 15 hours | |
Protection Method | IP65 is dustproof and waterproof; over-current/over-discharge/over-charge/short circuit/charging protection at high & low temperatures | |
Power Consumption | Standby Power Consumption | 1.68 mW |
Power Consumption of Daytime Operation | 0.88 W | |
Power Consumption of Operation at Night | 2.23 W | |
Interfaces | Power Supply | 1 Micro USB interface |
SD Card | 1 Micro SD card (up to 128GB supported) | |
Keys | 1 reboot key and 1 on/off key | |
Installation Method | Installation Method | Magnet and 1/4 universal screw holes |
Environment | Dustproof and waterproof | IP65 |
Operating Environment | -10 ℃ ~ 45 ℃ | |
Storage Environment | -20 ℃ ~ 60 ℃ | |
Specifications | Size (LxWxH) | 120.2 mm * 101.1 mm * 158.3 mm (without bracket) |
Net Weight | about 600 g | |
Gross Weight | about 700 g | |
Material + Process | ABS+PC | |
Color | White with high gloss | |
Certifications | Certificate | CE，FCC，RoHS，WEEE，MSDS，UN38.3 |
