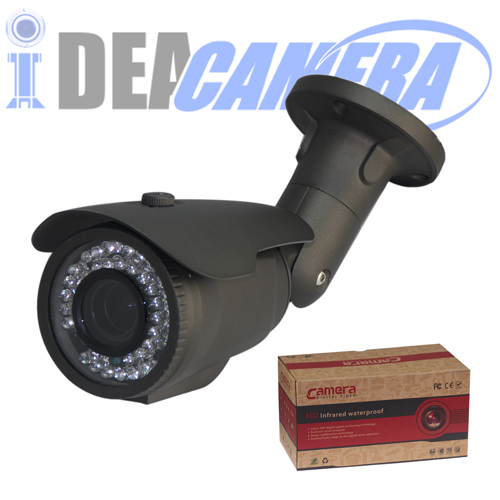

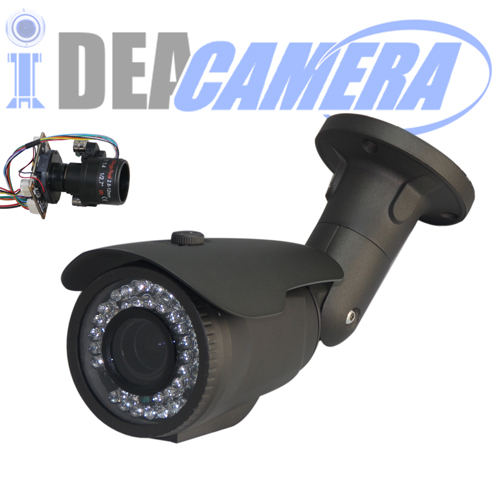

2MP H.265 Motorized Zoom IP Camera,IR Waterproof,Audio In,POE In,VSS Mobile APP,2.8-12MM 4X Lens,P2P
2MP H.265 Motorized Zoom IP Camera,IR Waterproof,Audio In,POE In,VSS Mobile APP,2.8-12MM 4X Lens,P2P
| Product Model: | RC-BF75M-2MPG-AF-PA |
| FOB Price: | US$38.78-US$40.78 |
| Min. Order: | 1pc |
| Product Brand: | IdeaCamera |
| OEM/ODM: | Support |
| Warranty: | 2 Years |
| Country of Origin: | China |
| Certificate: | CE,FCC,ROHS |
| PDF: |  |
Model: RC-BF75M-2MPG-AF-PA
Key features:
HD 2.8-12mm 4X Motorized zoom lens, auto focus.
42pieces IR LEDs, 35 meters of IR distance.
Dark gray metal housing with strong bracket.
Audio in with POE power supply.
Normal network video cable with waterproof sleeve.
Product characteristics:
1/2.9” CMOS Sensor (Hi3516EV200+GC2063).
Support H.264/H.265/H.265+ Video compression.
(VSS Mobile) app for mobile phone, (IMS300) app for computer.
Support all channels face detection by VSS system.
Standard 38*38 single board, Easy to install CCTV Camera.
Support IR-CUT (Day and night auto switch).
Max video resolution: 1920*1080@25/30fps.
Support 1ch audio input, 1ch audio output, realize two-way phonetic dialogue.
Support 1ch alarm input, 1ch alarm output
Support 1 USB reserve interface.
Support 1ch network lamp interface.
Support smart IR, 1ch TTL interface.
Support two-stream technology.
Support 3D noise reduction and digital WDR.
Support private network penetration and cross browser access.
Product Advantages:
Offer 2-years product warranties.
Logistics convenient.
OEM/ODM.
CCC/CE/FCC Certified.
Strict product quality control.
Efficiently working with almost NVR.
Lower price.
6-8 working day per order.
Product applications:
This is the best product of safety field. It and hard disk video recorders、cable、power supply、display、etc. Constitute a complete security system. Tts application is more extensive. Such as homes、factories、highways、office building、garden、community, or a large public places, etc.
2MP Economic Single-Boards IP Camera Module | ||
Product model | RC-BF75M-2MPG-AF-PA | |
System Structure | DSP | Embedded RTOS, DSP (Hi3516E V200) |
Sensor | 1/2.9" CMOS sensor (GC2063) | |
Video Encoding | Video Encoding | H.265/ H.264High Profile/Main Profile/ Base Line Profile |
Maximum Image Output | Main stream：1920*1080@25/30fps; Auxiliary stream optional | |
Streaming transmission | Two streams | |
Video Bite rate | 32Kbps~8MKbps | |
Image Enhancement | Min. illumination | Color0.1Lux@F1.2（AGC ON）； black and white0.01Lux@F1.2（AGC ON） |
Electronic shutter | Auto（1/3 to 1/10000） | |
Day/Night switch | color/B&W/Light sensitive switch/Mixed mode switch | |
white balance | Auto / Lock white balance / fluorescent lamp /filament lamp /fluorescent lamp /HM | |
DNR | 2D and 3D DNR | |
WDR | Support DWDR | |
Video Adjust | Sharpness, Brightness, Saturation, Contrast, chroma adjustable | |
image model | Transparent /real | |
color pattern | Standard /gorgeous | |
Corridor pattern | support | |
backlight compensation | support | |
FLC | support | |
penetrating fog | support | |
Smart IR | support | |
Interfaces | Signal interface | one photosensitive resistance signal interface, one IR_CUT drive interface support photo resistance signal links to IR-CUT and IR light |
ICR driving voltage | 5V | |
Smart IR | One port | |
Reset interface | One port | |
Audio interface | One audio in; One audio out | |
Alarm interface | One alarm in; One alarm out | |
electric zoom interface | One port（-Z model support） | |
TTL interface | One port | |
Power interface | One DC12V power input | |
USB interface | One Port | |
POE interface | One Extended Interface | |
Network light interface | One Port | |
Network interface | One RJ45 10/100M Port | |
TF interface | One Port （External USB to TF board） | |
Functions | Motion detection | Multiple detection zones, variable sensitivity levels |
Capture function | JPEG capture resolution is the max coding resolution | |
Security | Password protection and water marker | |
OSD | Support Channel Name and Time | |
storage | Support FTP storage | |
Smart alarm | Network abnormal, cover alarm etc. | |
Mobile client | VSSMOBILE for both iPhone and Android system phone | |
Protocol support | TCP/IP；UDP；HTTP；IGMP ；ICMP；DHCP；RTP/RTSP；DNS；DDNS；FTP；NTP；PPPOE；UPNP；SMTP；SNMP | |
Interface protocol | ONVIF2.6/CGI | |
General | Power Supply | DC12V |
Power Consumption | <1W (without infrared lamp board) | |
Lightning Protection | Power, network, POE all lightning protection, meets with standard GB/T17626.5，and IEC61000-4-5 | |
IR_CUT pitch | 20mm | |
Size | 38*38（mm）Single Board | |
