H.265 NVR,32CH 2SATA HD NVR,32CH Face Detection with VSS IPC,VSS Mobile App,P2P
H.265 NVR,32CH 2SATA HD NVR,32CH Face Detection with VSS IPC,VSS Mobile App,P2P
| Product Model: | NVR-3132-P16/JS |
| FOB Price: | US$142.65-US$147.65 |
| Min. Order: | 1pc |
| Product Brand: | IdeaCamera |
| OEM/ODM: | Support |
| Warranty: | 2 Years |
| Country of Origin: | China |
| Certificate: | CE,FCC,ROHS |
| PDF: |  |
Model: NVR-3132-P16/JS
Support 32CH Face Detection (Upgrade IPC)
With 16pcs POE ports, H.265 Format, Support ONVIF 2.6 protocol
IP input: 32ch@720/960/1080P / 3.0/4.0MP/5.0MP/6.0MP@30fps
Bandwidth: 200Mbps
Support 2SATA HDD (10TB)
Support Max 1~16ch real-time playback
Audio: 32ch in by RJ45, 1ch in by RCA, 1ch out by RCA
Support Multi-Protocols/P2P/Cloud Storage (google drive/drop box)
Built-in free DDNS/UPNP/3G Dongle supported/Digital zoom/Mobile phone surveillance

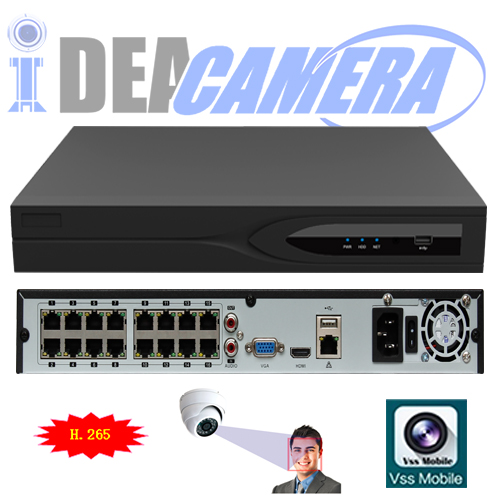

1 x VGA port,1 x RJ45 ports; 1 x HDMI ports; 2 USB2.0 ports, 1 xRS485 port
Remote controlling, Mouse controlling
Mobile phone APP: VSS Mobile (support IOS/Android system)
Computer client controlling (IMS300 platform)
Standard configuration power with POE port (≤200W)
Offer services:
Offer 2-years product warranties.
Logistics convenient.
OEM/ODM.
CCC/CE/FCC Certified.
Strict product quality control.
Lower price.
6-8 working day per order.
Applications:
This is the best product of safety field. It and CCTV camera、cable、power supply、display、etc. Constitute a complete security system. Tts application is more extensive. Such as homes、factories、highways、office building、garden、community, or a large public places, etc.
Model | NVR3116-P16/JS | NVR3132-P16/JS | |
OS | Embedded Linux | ||
Video&Audio input | Bidirectional Talk | 1CH, RCA (Line in,2Vp-p,1Kohms) | |
Incoming bandwidth | 128Mbps | 200Mbps | |
Outgoing bandwidth | 128Mbps | 160Mbps | |
IPC Input | 16CH | 32CH | |
Video&Audio output | VGA | 1CH,1920×1080,1280×1024,1280×720,1024×768 | |
HDMI | Standard 1.3a | ||
1920×1080,1280×1024,1280×720,1024×768 | |||
Audio Output | 1CH, RCA (Line out,2Vpp,300ohms) | ||
Video&Audio encoding | Audio Compression | G.711A | |
Audio Bit Rate | 64Kbps | ||
Video&Audio decoding | IP channel Resolution | Main stream: Up to 1920x2048 | |
Video decoding | MPEG-4/H.264(Up to High Profile@Level4.2） | ||
Audio decoding | G.711A/G.726 | ||
Synchronous Playback | Up to 16CH | Up to 16CH | |
Decoding Ability | 13CH 720P@30FPS or 6CH 1080P@30FPS | ||
Elligent Analysis | 1CH Face detection or 2CH Perimeter detection | N/A | |
Up to 1080P | |||
Other Function | Bidirectional Talk | Two-way voice intercom function | |
Motion Detection | Zones: 396(22*18), Sensitivity: 1~6 (level 6 is highest) | ||
Picture Capture | Support JPEG Capture | ||
HDD Interface | SATA | 2 SATA Interfaces | |
Max Capacity | Unlimited | ||
POE Interface | POE Interface | 16CH | 16CH |
IEEE 802.3af | IEEE 802.3af | ||
RJ-45 10/100 Mbps self-adaptive Ethernet interface | RJ-45 10/100 Mbps self-adaptive Ethernet interface | ||
Power | ≤200W | ≤200W | |
External Interface | Network Interface | 1 RJ45 10M/100M/1000M self-adaptive Ethernet interface | |
USB | 2 USB2.0 Interfaces | ||
Structure | Dimensions | 405*365*123mm | |
Front Panel | LED | ||
Size | 1U,360*311.5*48mm | ||
Weight | 3KG (without HDD) | ||
Installation | Desktop Installation | ||
General | Power Supply | 110V~220V±10%, 47Hz～63Hz | |
Working Temperature | 0℃--＋55℃ | ||
Working Humidity | 10％--90％ | ||
Consumption | 10W (without HDD, without POE) | 10W (without HDD, without POE) | |
